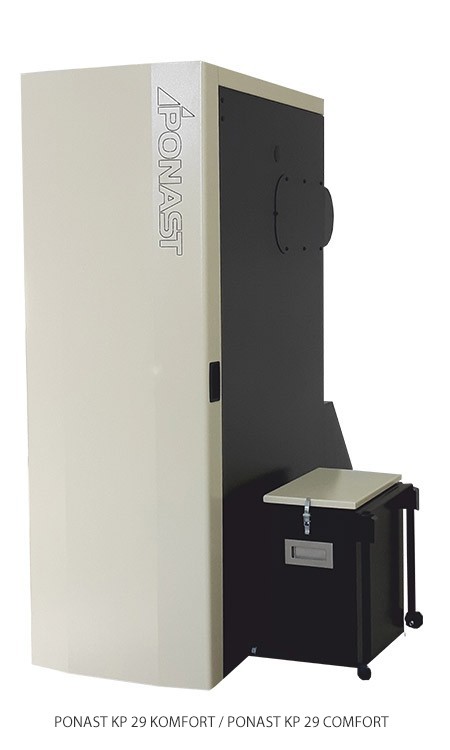

Automatic pellet boiler KP 29
Automatic pellet boiler KP 29
Power
29 kW
Fuel
pellets
SVT
25194
Catalog number: HKXI2903
Characteristics of the product: power output ( 8,7 - 29 kW )
STANDARD Version
- automatic ignition
- semiautomatic heat exchanger cleaning
- manually ash removal
- remote control via ethernet
- prepare to add automatic heat exchanger cleaning
- prepare to add automatic ash removal
COMFORT Version
- automatic ignition
- automatic heat exchanger cleaning
- automatic ash removal
- optimalization combustion process with lambda probe
- remote control via ethernet
- possibility to install the burner with self celaning system
Service, maintenance
The function of the boiler is controled with temperature sensors or thermostats. There is need (by STANARD version) to clean the heat exganger due moving the lever on the side of the boiler, to remove ash from the ash bin and control the amount of pellets in fuel bin.
Fuel:
Wood pellets diameter 6 - 8 mm
Technical description:
- boiler body - steel weldment 3 - 5 mm
- burner - linear construction - refractory steel
- ceramic parts
- control unit with touch screen display
- remote control via ethernet
- controlling of heating circle, hdomestic hot water, accu tank
- controlling in power range from 30% until 100% power output
The boilers are Czech products
| Output: | 29 kW |
| Output range: | 8,7 - 29 kW |
| Fuel consumption: | 1,9 - 6,6 kg/h |
| Efficiency: | 90,9 % |
| Flue gas temperature: | 134 °C |
| Minimal operation chimney draught: | 8 Pa |
| Recommended temp. of heating water: | 60 - 80 °C |

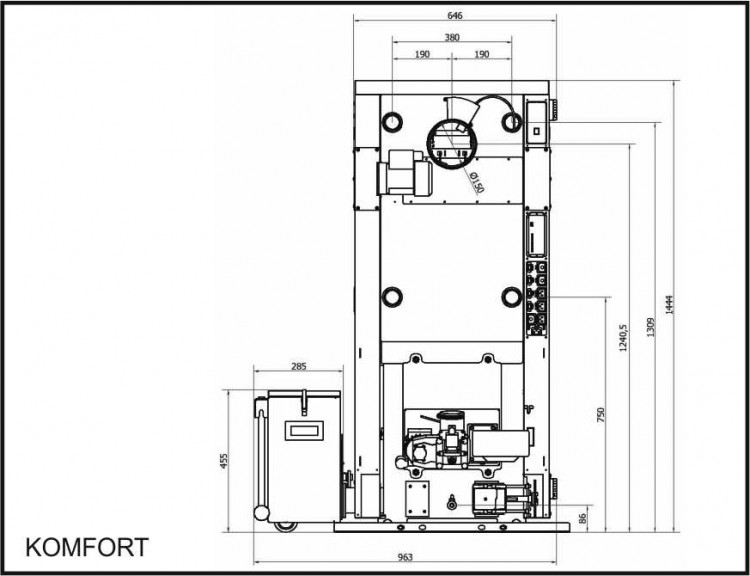

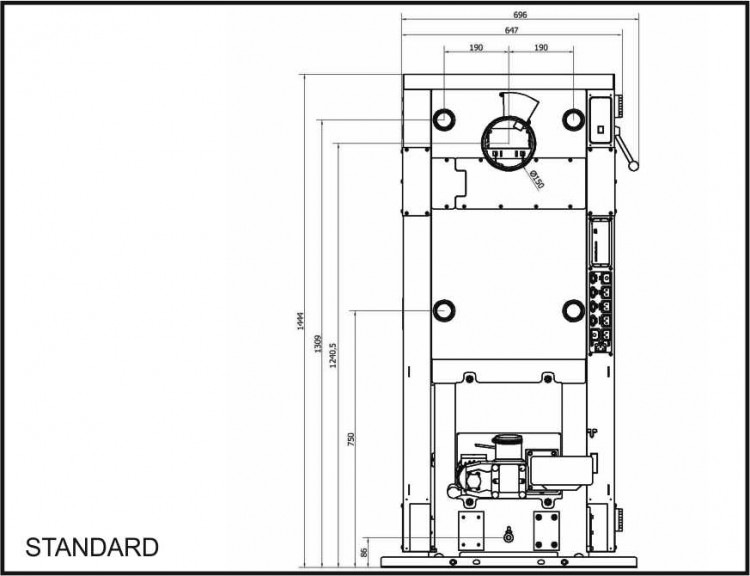

| Dimensions: | 674 x 1146 x 1444 mm |
| Weight: | 370 kg |
| Conecting voltage: | 230 V AC ± 10%, 50Hz ± 2Hz |
| Electric input (2 motors + fan): | 193 W |
